Sugden A21aL Signature

A21 Signature Line Amplifier

Available for Demo

The Sugden pure class A design provides affordable high-end performance from a beautifully engineered single box integrated amplifier. Compact in size with a simple but stylish design, the A21 is possibly the only amplifier you will ever need.

With many of the original A21’s still in daily use after fifty years, it could also last a life time. Providing a large soundstage and depth to all types of music, the A21 is an amplifier you can listen to for hours without fatigue.

The single ended voltage rail circuit provides impressive dynamics and incredible bass. The A21 Signature integrated amplifier is available with or without a MM/MC phono input. Without a phono input it is designated the A21L (line input only). A21aL models can be fitted with a phono input at a later date.

Facilities

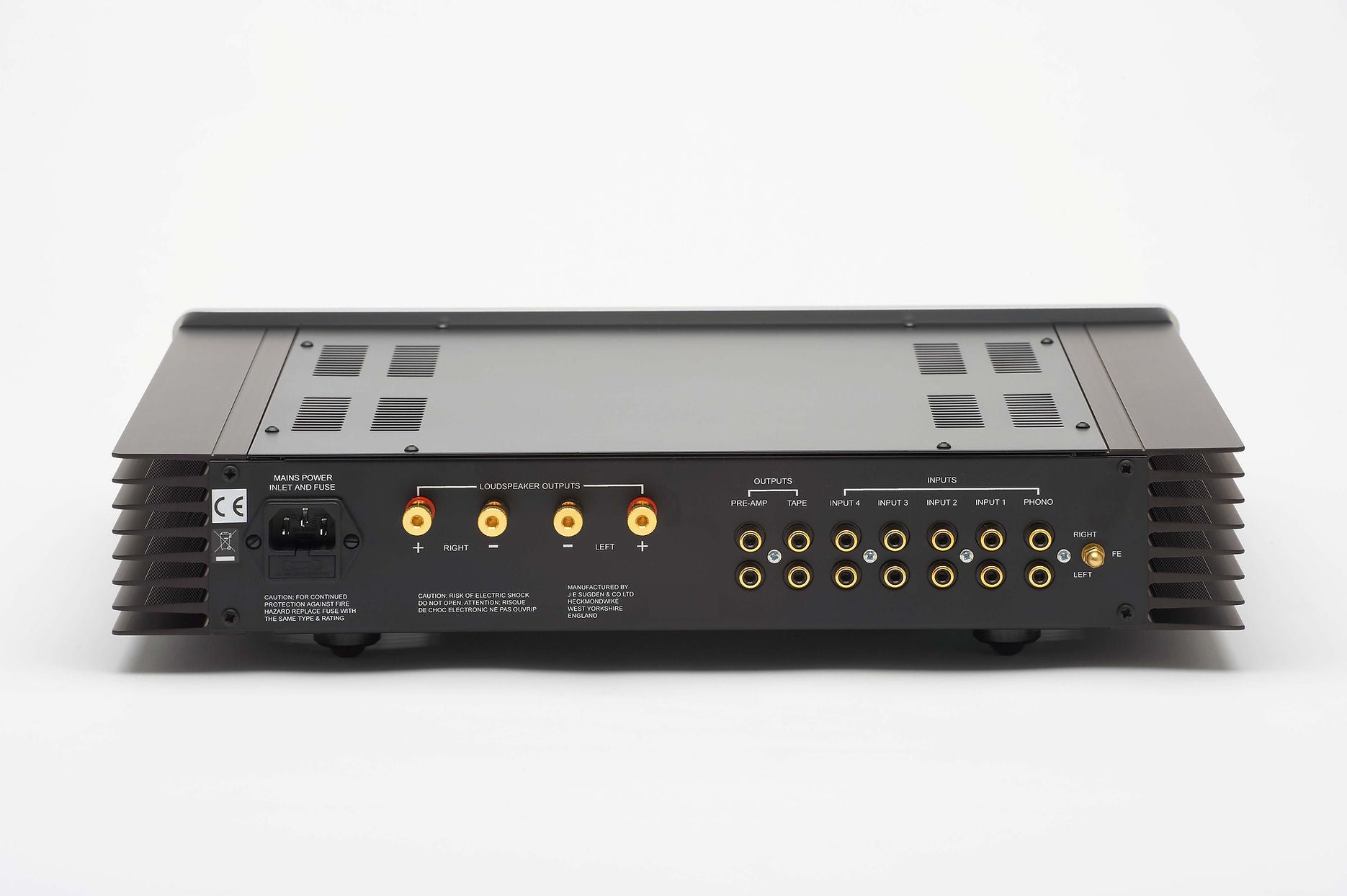

Inputs

Five line level (four on A21 Integrated), Optional mm/mc phono

Outputs

One pair of stereo multi-way binding posts, Pre-out (variable), tape out (fixed)

Remote Control

Volume up/down

Specifications

Line Input Sensitivity: 170mV for max. out

Phono Input Sensitivity: 3mV/mm, 0.2mV/mc for max. output

Phono Loading: MM 47K MC 470 Ohm

Power Output: 25 Watts into 8 Ohms

Frequency Response: +/-1dB 10Hz-20kHz

Bandwidth: 6Hz-200kHz

Signal to Noise: >83dB

Gross Weight (packed): 11kgs

Dimensions: 92 x 430 x 350mm (hwd)
